RC-J1200 Primary crushing

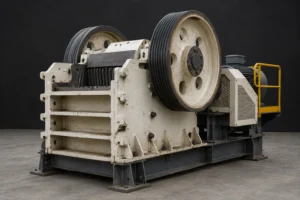

RC-J1200 Jaw Crusher
Primary crushing for hard, abrasive rock — a bolted frame that can be shipped into a decline and assembled underground.
380–520 t/h granite, CSS 125–200 mm 16 weeks
Machines
Each machine record carries its drawing number, the process stage it works in, the range it was sized for and the lead time on the unit.
RC-S2460 Screening
RC-S2460 Triple-Deck Screen
Three decks, 2.4 × 6.0 m — the machine that decides whether the product list actually meets specification.
250–400 t/h depending on cut points and deck media 14 weeks
RC-VF1100 Feed

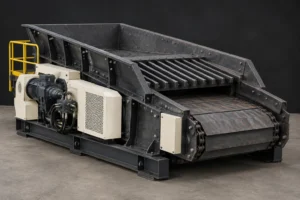

RC-VF1100 Vibrating Grizzly Feeder
Takes the dump and pulls the fines out before the jaw, so the crusher only sees the rock that actually needs breaking.
400–600 t/h on granite run-of-mine, bed depth 250–350 mm 12 weeks
RC-C900 Secondary crushing

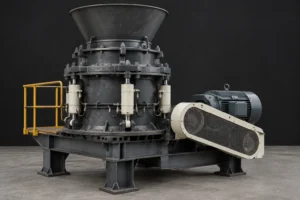

RC-C900 Cone Crusher
Secondary crushing in closed circuit with the RC-S2460, aimed at reduction ratio rather than raw throughput.
180–260 t/h closed circuit with RC-S2460, CSS 12–38 mm 18 weeks
RC-B1200 Conveying
RC-B1200 Overland Conveyor
1 200 mm belt in standard 12 m modules — a designed line, not whatever lengths were in the yard.
600 t/h at 1.6 m/s belt speed 10 weeks
Planned: filtering and comparison
Filter the machines by stage and rock type
A filter row over the process stages and rock types the machines already carry, and a comparison view that puts two chosen units side by side — drawing number, capacity, lead time and the circuits each one serves.
- Faceted filtering by process stage and rock type
- A comparison view for two machines at a time
